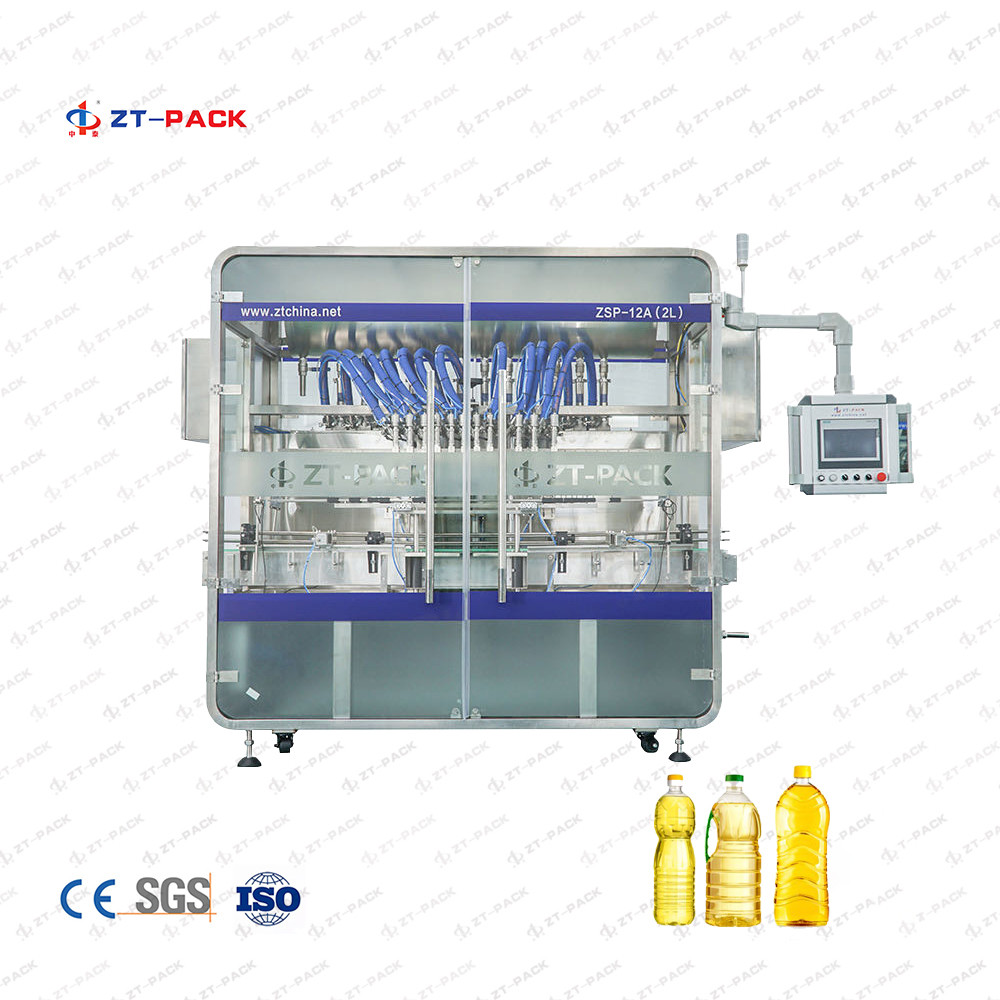

Factory Direct 6-16Head Food Oil And Edible Oil Filling Machine
Description
Factory Direct 6-16Head Food Oil And Edible Oil Filling Machine is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates.
Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Main Performance:
1. Capacity:≤2000 bottles/hour
2. Applicable Bottle Type:1L Height 190-200mm,width 135-145mm,thickness 55mm.
3. Bottle’s mouth diameter:1L diameter 35-45mm,machine design according to customer bottle
4. filling range:100ml-1000ML
5. Precision: (100ml-1000ml)±0.5%
6. Air pressure : 0.6～0.8 MPA
7.Air consumption:120L/minute
8. Power Source:～380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 1850Kg
12.Production line height:850mm±50mm
13.Filling materials:Viscosity liquid
14.Bottle feed direction:From left to right
Parameters:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension | 2200mm(L)x1100mm(W) x2200mm(H) | 2300mm(L)x1100mm(W) x2200mm(H) | 2400mm(L)x1100mm(W) x2200mm(H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm |
| Neck diameter | Φ18mm |
| Filling range | 50ml--1000ml (From ZT-PACK) |
| Filling System | Piston Type |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |

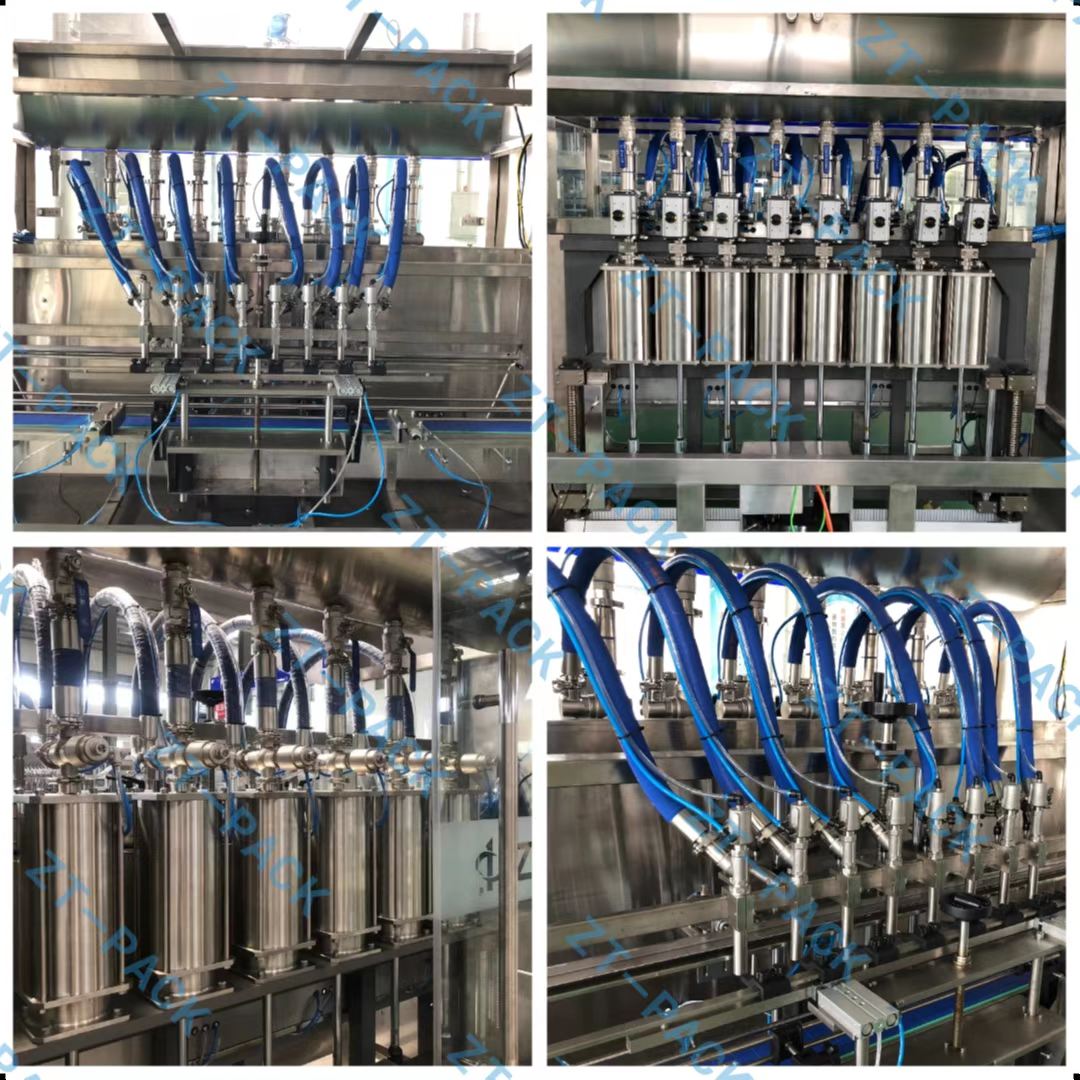

Details:
